Energy & Sustainability Services

Recently more jurisdictions have adopted the 2015 IECC or the IgCC and we have been helping several architects & designers with energy and sustainability code compliance.

Go custom! You don’t have to follow the recipe. Make the energy code work for your project.

Farm out the energy work to Confluence. We will be responsible for any or all of these, bring value to the performance of the building, and take the load off of your hands:

  • Energy code compliance
    • Infiltration (blower door) testing
    • Assembly UA trade-off (calculation software)
    • Total UA trade-off (REScheck or HERS Rating)
    • Performance path compliance (REScheck or HERS Rating)
    • ERI path compliance (HERS Rating)
  • Code compliance/optimization and Construction Documents
    • Ventilation calculations
    • Sealed crawlspace & ventilation details
    • Continuous Insulation details
    • Back-ventilating siding and attachment details
    • Efficient framing details
    • Fenestration flashing details
    • Radon mitigation details
    • Thermal and pressure envelope delineation
    • Vapor retarder specifications
    • Air-sealing details
  • Local/municipal Green/Efficient Building Checklists
    • Carbondale, Basalt, Town of Snowmass Village, Telluride, Mountain Village
  • Above-code/Net Zero design and certification
    • LEED, Passive House, HERS Rating, etc.

Recent work…

We have recently gotten the chance to photograph some recently completed work.

The Basler Residence at Elk Springs, Garfield County, Colorado…



And this storage banquette…

Here’s a house going up in Oak Meadows…





Couple creates a deep-green, DIY home in Satank, Colorado

This is a re-posting of an article from Roaring Fork Lifestyles magazine.

Link…

Check this Tumbler scrapbook about the construction process, very interesting.

Link…

Confluence Architecture & Sustainability was the HERS raters for this home. The HERS is an outstanding -10! The negative means is actually beyond net-zero, it is net-positive. As in, the occupants of this home should never have to pay for heating, cooling, lighting or hot water. Attention to detail got this house crazy air tight. Even with salvaged windows and doors, Steven was able to get this down to .69 ACH50. I’m sure it would have bested Passive House requirements (.6 ACH50) if not for the less-than perfect windows and doors.

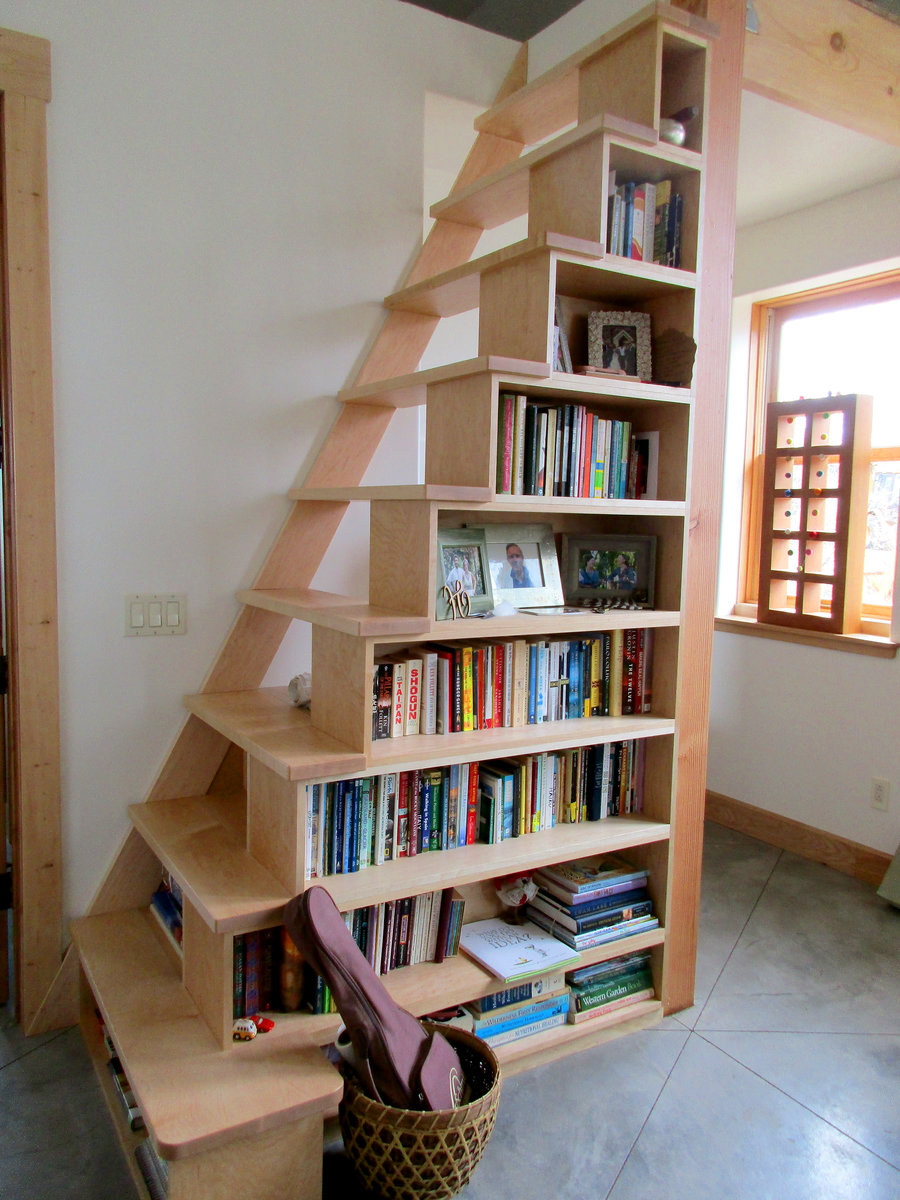

Congratulations Steven and Bailey- you have a beautiful, high-quality home. Here are a few teaser photos…

The "Hainestead"





Generic energy modeling verses HERS Ratings

What is energy modeling and why would I want it?

Basically, energy modeling software creates a mathematical simulation of your building over time to estimate how much it will cost to operate. It figures out how much heat is lost through every square foot of the envelope and how much heat is gained by the sun shining through the windows every year. It uses historical weather and solar data to calculate how much heat you will need to put into or remove to keep the indoor environment comfortable. And it can put this data in terms of dollars spent on fuel and utilities.

What’s the point? Optimization. We can swap different windows, adjust overhangs, try differing amounts of insulation, etc. and see what the result to the loads are, so we can find the sweet spot for your particular building. Knowing how much it costs to operate your building will allow you to calculate a return on investment for monies spent on energy conservation upgrades. For example, solar will pay for itself in the long run, but what is the payback period 5 years? 10 years? 20 years? Is it better to add continuous exterior insulation or buy better windows? Is it more cost-effective to add insulation to the attic or buy a few more solar panels?

HERS Rating

So what is a HERS Rating?

The RESNET HERS Rating protocol is a nationally standardized energy modeling system, just for houses, that lets us get to the answers relatively quickly and makes results consistent and comparable across the country.

The value of a HERS Rating over just energy modeling comes in four ways.

  1. Code compliance- HERS Ratings supersede the rigid rules of the energy code and gives you flexibility.
  2. Third-party inspections- we inspect at rough to look for problems with air barriers and insulation. Having an air-tight envelope not only saves energy, it helps prevents rodents, bugs and dust from getting into the house. We grade insulation on the quality of its installation. If we find less than perfect installation, we bring it to the attention of your GC and he can have it corrected before it is too late.
  3. Rebates- many rebates are only available to those that receive a HERS Rating.
  4. Resale- the score goes on the MLS report so buyers get a sense of how efficient the house can be (like a MPG sticker for a car). Embedding the value of energy features in the value of the home also makes it easier to invest in features that have a longer return on investment.



What energy modeling doesn’t do…

  1. The model doesn’t know how much anything costs, except gas and electric. So it will not do a cost benefit analysis without help from the rest of your team.
  2. It is not the same kind of zoned load calculations used by HVAC designers to size ductwork or radiant tubing layouts. You will still need a heat/cooling/ventilation distribution design. It will tell us how many kBtu the furnace or boiler should produce, but not how to get the right amount of heat to every corner of the house to maintain comfortable temperatures.
  3. It is just an estimate. Occupant factors, like where the thermostat is set, will skew the numbers accordingly.



Why choose Confluence Architecture and Sustainability?

The team at Confluence has been practicing architecture in the extreme climate of the mountains of Colorado since the turn of the century. We started offering sustainability services when the 2009 International Energy Conservation Code was adopted. We know how to play with Owners, Architects, Engineers, Builders and Code Officials. We bring our experience to the table on tangential matters like; air barriers, vapor retarders, ventilation rates, indoor air quality, mechanical systems and optional solutions and alternative methods for code compliance. And we can make recommendations to increase the quality, comfort and durability of your structure.

Hers are some other related blogs…

https://www.confluencearchitecture.com/hers-rating-process/

https://www.confluencearchitecture.com/blower-door-test/

https://www.confluencearchitecture.com/preparing-for-your-blower-door-test/



Aspen no longer a leader in carbon reduction policy

I was hugely disappointed to learn that Aspen no longer seams interested in being viewed as a leader in carbon reduction. The City has just adopted, what is, in my opinion, a relaxed version of the International Energy Conservation Code. The Building Department asked me for data. So I went through 140 different blower door tests and HERS Ratings I had on file to get a feeling for how our new construction is looking. Summary of data below…

locationnumber of testsnumber of tests over 3 ACH50ACH50 averageACH50 lowACH50 High
City of Aspen49263.41.267.08
Pitkin County42203.231.286.37
Snowmass Village874.122.925.71
Town of Carbondale26133.061.165.8

In terms of HERS Ratings- RESNET says the national average score is 61. Colorado had 12,320 (of 206,583) rated homes last year, with an average score of 55. Remember that lower is better when talking about HERS Ratings. Our average HERS Rating score in the Roaring Fork Valley over the past seven years is a 56. So Colorado is better than average nation wide, but the Roaring Fork Valley is behind the state average. Summary of HERS data below…

Number of Ratings in 2016Average HERS Index in 2016
Alabama1,74571
Alaska*42555
Arizona12,52263
Arkansas71472
California**1,15668
Colorado12,32055
Connecticut1,23653
Delaware2,06753
District of Columbia33759
Florida12,48458
Georgia8,82070
Hawaii3145
Idaho1,64960
Illinois3,36160
Indiana8,95165
Iowa5,03256
Kansas1,28969
Kentucky2,00965
Louisiana31474
Maine11326
Maryland6,51355
Massachusetts7,46655
Michigan2,94457
Minnesota6,49451
Mississippi2565
Missouri62568
Montana11549
Nebraska1,24952
Nevada4,96662
New Hampshire59161
New Jersey3,70461
New Mexico1,14856
New York3,64053
North Carolina13,39766
North Dakota2158
Ohio6,59560
Oklahoma4,01961
Oregon33056
Pennsylvania3,57961
Rhode Island33462
South Carolina7,74068
South Dakota21953
Tennessee1,10667
Texas40,01264
Utah1,52262
Vermont38847
Virginia7,23563
Washington1,31656
West Virginia12667
Wisconsin2,52652
Wyoming6358



Below is a letter sent to the Aspen City Council…

Aspen City Council members,

I intended to speak at the meeting of January 10th but was misinformed about the time and therefore arrived too late. My intention was to recommend denial of the proposed adoption of the 2015 International Energy Conservation Code as amended by the Community Development Department. My preference would be to see the document adopted as written.

My firm, Confluence, has been providing architectural services in the valley for nearly seventeen years. In 2010 the firm began offering energy code compliance services; energy modeling and building testing.

Aspen has adopted a heavily modified version of the code. One that deletes some important tenets of this latest version of the International Building Code. For instance, the requirement for mandatory air infiltration testing has been removed. My professional opinion is that these tests are a valuable check on the condition of the barrier between outside and inside. The data the we have compiled from our work in the valley shows that only about half of that new construction would have passed the 2015 code limits. Research shows us that air sealing is the single least expensive way to reduce the energy consumption of a building.

Aspen’s Climate Action Plan says the community has a goal of reducing greenhouse gas emissions by 80% by 2050. Approximately 32% of Aspen’s emissions come from buildings. If the City were serious about making those goals, then why relax energy conservation building codes at all? Why would the City lowering the bar instead of ensuring that new construction complies with the same code that Pitkin County, the Town of Snowmass Village and Eagle County have adopted?

To me it sounds hypocritical for, Aspen, the home of CORE, the Canary Initiative, Z Green and AREday, not to be doing everything possible to make sure their new construction meets contemporary minimum construction standards.

Final point, it negates the benefits of having an International code system if every jurisdiction completely rewrites the content. It leads to increased confusion, time, money, and potential for mistakes. Why not standardize?

Mark McLain,

Architect & Sustainability Consultant

Pitkin County and Eagle County adopt the 2015 Energy Code

Denver, Boulder and Vail have already done it. Glenwood Springs, Carbondale, Basalt and Aspen will do it soon. But starting today, September 6th 2016, all building permit applications submitted in Pitkin County must demonstrate compliance with the 2015 IECC (International Energy Conservation Code). Eagle County has postponed implementation of the codes until the start of the new year. This will give them time to train staff and educate local architects and builders on upcoming changes. That sounds smart to me, because the changes are not insignificant.

What’s new in the 2015 Energy Code?

Building Department reviews will be looking for new kinds of information on Construction Documents. Drawings will need to tell the story of how a building will be built to conserve energy; insulation, lighting, heating, cooling, moisture management and indoor air quality. Some jurisdictions are requiring that all IECC information be put on it’s own “energy” sheet.

The maximum allowed infiltration rate has decreased to 3 ACH50 and testing is mandatory. The 2009 limit of 7 ACH50 was easy; 3 ACH50 can be a challenge.

Mechanical ventilation is now mandatory. Plan on a HRV (or ERV if you have air conditioning) or some kind of exhaust-only ventilation.

Mechanical systems must be sized with ACCA Manuals J, S & D.

Prescriptive insulation values have crept up a bit in some categories. Chart shows new 2015 values in red.

IECC Prescriptive Insulation Table Headings

IECC Prescriptive Insulation Table

For designer and builders using the prescriptive method of compliance, this means no more 12″ vented roofs. And in zones 6 & 7, no more walls without exterior continuous insulation.

If you want or need to break any of these rules, then you need to choose another compliance path. Using one of the performance path methods (REScheck, COMcheck, HERS Ratings, etc) will make the code easier and more flexible.

Confluence Architecture & Sustainability can help you with all of these facets; from submittal documents to blower door testing. We can help you find the least expensive way to satisfy the building department and inspector, or we can help you design a high-performing net-zero building. Give us a call…



Homes Under Construction

Construction season started with a bang here in the Roaring Fork Valley.  Confluence Architecture currently has 5 homes we designed under construction.  A record for us.  We  are working with a range of clients from owner builders to spec builders.  Here are highlights from recent site visits:

construction excavation

Excavation at Crystal River Valley home











Elk Springs home under construction

Insulation complete and siding in process at Elk Springs home









Working on Finishes at Shaw Spec Storybook House.  Check out that helix stair.

20160407_15273820160407_154010








framing stage of constructionFraming underway at the Hilleke Home



Pass the blower door test the first time

If you haven’t been through a blower door test yet, chances are you will soon. As Pitkin County, Aspen, Basalt and Carbondale gear up to adopt the latest round of building and energy efficiency codes. The 2015 IECC (International Energy Conservation Code) have houses going for a maximum of 3 ACH50 (Air Changes per Hour at -50 Pascal) and commercial buildings going for a maximum of .40 CFM/square foot of envelope area at -75 Pascal. Most builders I work with could get to 7 ACH50 without doing anything extra. Getting to 3 ACH50 will take some extra care. If you are unfamiliar with the techniques of air sealing, then read up or get an expert on the team. A great place to start reading is the ENERGY STAR Thermal Bypass Checklist . Awesome document- do this stuff and you will pass the blower door test the first time.

Test day

I’m often asked, “what do I need to have done before we test?” Completely done, done, done is ideal; but in reality…  below is my checklist of this that should be done before testing so test results are not significantly degraded:

  1. doors and windows installed
  2. door and window hardware and weatherstripping installed
  3. door thresholds installed
  4. hatches to unconditioned attics and crawlspaces installed and gasketed
  5. dampers in place
  6. fireplace doors installed
  7. plumbing traps filled
  8. conduits leading outside sealed
  9. air handlers and ductwork complete
  10. light fixtures installed
  11. plate covers installed
  12. any other gap, crack or hole between inside and outside that you can find

Setting up the Building

When we test a building for air infiltration the building must be setup in a prescribed fashion. The IECC has it’s section (2009 IECC R402.4.2.1 or 2009 IRC N1102.4.2.1)  that describes how to setup a house. RESNET has their official protocol as well, the document ANSI/RESNET/ICC 380-2016.

  1. Exterior windows and doors, fireplace and stove doors shall be closed, but not sealed with tape;
  2. Dampers shall be closed, but not sealed; including exhaust, intake, makeup air, back draft, and flue dampers;
  3. Interior doors shall be open;
  4. Exterior openings for continuous ventilation systems and heat recovery ventilators shall be closed and sealed;
  5. Heating and cooling system(s) shall be turned off;
  6. HVAC supply and return registers shall not be sealed.

Running the test

I usually takes me 20-30 minutes to set up the blower door equipment and check that the house is prepared. I need an exterior door that is not too small or too big to set up in, power nearby and a space to work in. If the house is more than 5000 square feet or so, I will set up double fan equipment.  Then I will need to shut down the air handler and exhaust fans. At this point, anyone opening a door would void the test. But typically I only need the doors closed for five minutes to get an accurate reading. If it hasn’t been done yet, I will need the drawings to calculate the volume of air inside the house. Then do the math; flow (the results of the test) X 60 divided by the volume of the house = the number of air changes per hour. In the end, I create a certificate, that need to go to the building official.

If you want/need someone else’s eyes on the job, then give us a call. Confluence Architecture has a lot of experience with construction detailing, building testing, improving test results and also does HERS ratings, RESchecks, COMchecks, blower door tests, duct blast tests, IR camera inspections, etc.
